High Pressure Seamless
Rigid Tubing

Elite-HPT high pressure tubing are seamless and cold-drawn with high yield and tensile strength up to 88.000 psi (6.070 bar) from 1⁄4” up to 1” O.D.

Tubing is used in a various range of applications, not only for high pressure but also for aggressive (corrosive) medium.
Main applications are waterjet cutting, production lines, hydraulic and pneumatic testing. Tubing is suitable for liquids and gases.

Tubing can also be custom branded.

tubes-img

316L

316L are the standard materials. Typical special materials (Hastelloy, Inconel, Duplex, Superduplex, Monel and others) are available upon request.

5-7m

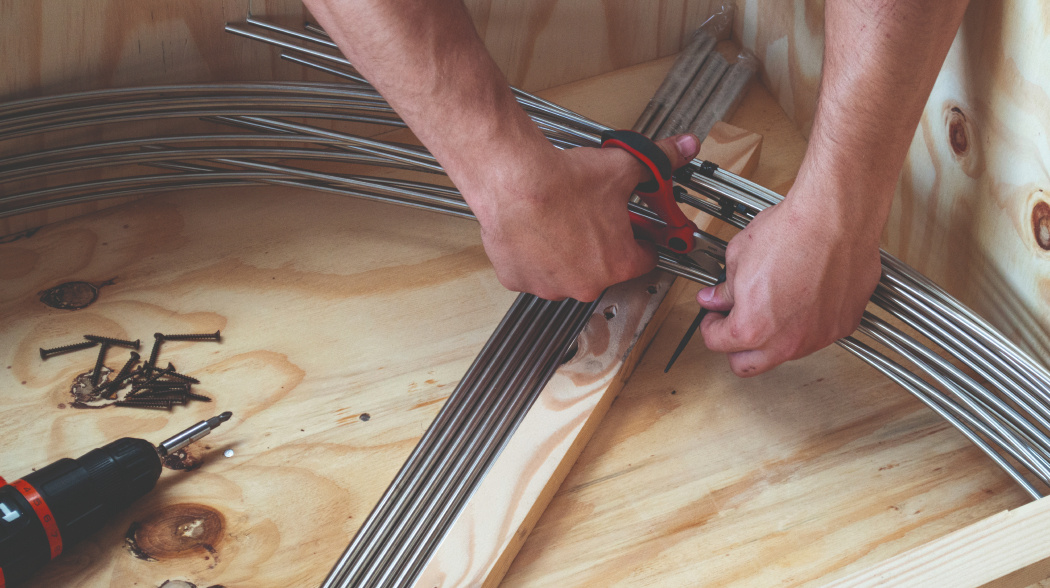

Tubing is provided in random lengths of 5-7 metres (16,4-23 ft), it can be supplied to customer length as required and it can also be coiled (only 1⁄4”).

MAIN FEATURES

  • Operating temperature range from -252°C to +649°C

  • External surface finish: bright finish, free from lamps/flaws/fissures

  • Bore surface finish: minimum 100 RMS = 2,3 Ra μm = 92 AARH

  • Standard non-destructive test: Eddy current ASTM A450/E426

  • Rating from 10.000 - 88.000 psi (686 - 6.070 bar)

MECHANICAL PROPERTIES

High pressure

RATING SERVICE YIELD POINT TENSILE STRENGTH ELONGATION HARDNESS
PSI BAR N/MM² N/MM² MIN.% MIN. HRB
10.000 689 ≥ 517 ≥ 724 ≥ 22 ≥ 95
20.000 1.378 ≥ 517 ≥ 724 ≥ 22 ≥ 95
30.000 2.068 ≥ 689 ≥ 758 ≥ 18 ≥ 95
40.000 2.757 ≥ 689 ≥ 758 ≥ 18 ≥ 95
60.000 4.136 ≥ 689 ≥ 758 ≥ 18 ≥ 95
88.000 6.070 ≥ 1100 ≥ 1200 ≥ 12 ≥

Hydrogen

RATING SERVICE YIELD POINT TENSILE STRENGTH ELONGATION HARDNESS
PSI BAR N/MM² N/MM² MIN.% MIN. HRB
10.000 689 ≥ 517 ≥ 724 ≥ 22 ≥ 95
20.000 1.378 ≥ 517 ≥ 724 ≥ 22 ≥ 95

RECOMMENDED BEND RADIUS

for Medium & High Pressure Tubing (316L)

High pressure

20.000 PSI (1.380 BAR)
SIZE (INCH) MR (MIN)
INCHES (MM)
1/4" x 0,111 1,25 (32)
3/8" x 0,208 1,75 (44)
9/16" x 0,318 2,62 (67)
3/4" x 0,444 3,5 (89)
1" x 0,567 4,62 (117)

Hydrogen

20.000 PSI (1.380 BAR)
SIZE (INCH) MR (MIN)
INCHES (MM)
1/4" x 0,111 1,25 (32)
3/8" x 0,208 1,75 (44)
9/16" x 0,318 2,62 (67)
3/4" x 0,444 3,5 (89)
1" x 0,567 4,62 (117)
60.000 PSI (4.140 BAR)
SIZE (INCH) MR (MIN)
INCHES (MM)
1/4" x 0,085 1,25 (32)
3/8" x 0,130 1,75 (44)
9/16" x 0,193 2,62 (67)

STANDARD TUBING SIZES

High pressure

CODICE SIZE TUBE OD TUBE ID WALL THICKNESS WEIGHT RATING SERVICE DIAMETER TOLERANCE
OUTSIDE INSIDE
  INCH MM MM MM Kg/m PSI BAR INCH MM INCH MM
TU.00.88.04.HPT6 1/4" 6,35 2.1 2,09 0,223 88.000 6.070 0,248/0,243 6,299/6,172 0,079/0,083 2,007/2,108
TU.05.60.04.316 1/4" 6,35 2.1 2,09 0,223 60.000 4.136 0,248/0,243 6,299/6,172 0,079/0,083 2,007/2,108
TU.05.20.04.316 1/4" 6,35 2.8 1,77 0,203 20.000 1.378 0,248/0,243 6,299/6,172 0,104/0,109 2,642/2,769
TU.00.88.06.HPT6 3/8" 9,53 3.2 3,11 0,500 88.000 6.070 0,370/0,365 9,398/9,271 0,121/0,125 3,073/3,175
TU.05.60.06.316 3/8" 9,53 3.2 3,11 0,500 60.000 4.136 0,370/0,365 9,398/9,271 0,121/0,125 3,073/3,175
TU.05.20.06.316 3/8" 9,53 5.2 2,12 0,393 20.000 1.378 0,370/0,365 9,398/9,271 0,198/0,203 5,029/5,156
TU.00.88.09.HPT6 9/16" 14,28 4.8 4,7 1,127 88.000 6.070 0,557/0,552 14,148/14,021 0,182/0,187 4,623/4,750
TU.05.60.09.316 9/16" 14,28 4.8 4,7 1,127 60.000 4.136 0,557/0,552 14,148/14,021 0,182/0,187 4,623/4,750
TU.05.40.09.316 9/16" 14,28 6.5 3,9 1,013 40.000 2.757 0,557/0,552 14,148/14,021 0,245/0,250 6,223/6,350
TU.05.20.09.316 9/16" 14,28 7.8 3,11 0,870 20.000 1.378 0,557/0,552 14,148/14,021 0,307/0,312 7,798/7,925
TU.05.10.09.316 9/16" 14,28 9.28 2.50 1,124 10.000 689 0,557/0,552 14,148/14,021 0,354/0,359 8,992/9,119
TU.05.20.12.316 3/4" 19,05 11.1 3,91 1,483 20.000 1.378 0,745/0,740 18,923/18,796 0,432/0,437 10,973/11,100
TU.05.20.16.316 1" 25,4 14.3 5,5 2,740 20.000 1.378 0,995/0,990 25,273/25,146 0,557/0,562 14,148/14,275

Hydrogen

CODICE SIZE TUBE OD TUBE ID WALL THICKNESS WEIGHT RATING SERVICE DIAMETER TOLERANCE
OUTSIDE INSIDE
  INCH MM MM MM Kg/m PSI BAR INCH MM INCH MM
TU.05.20.04.316 1/4" 6,35 2,8 1,77 0,203 20.000 1.378 0,248/0,243 6,299/6,172 0,104/0,109 2,642/2,769
TU.05.20.06.316 3/8" 9,53 5,2 2,12 0,393 20.000 1.378 0,370/0,365 9,398/9,271 0,198/0,203 5,029/5,156
TU.05.20.09.316 9/16" 14,28 7,8 3,11 0,870 20.000 1.378 0,557/0,552 14,148/14,021 0,307/0,312 7,798/7,925
TU.05.20.12.316 3/4" 19,05 11,1 3,91 1,483 20.000 1.378 0,745/0,740 18,923/18,796 0,432/0,437 10,973/11,100
TU.05.20.16.316 1" 25,4 14,3 5,5 2,740 20.000 1.378 0,995/0,990 25,273/25,146 0,557/0,562 14,148/14,275

Find out more

Download our brochures to learn more about our products.
High pressure

HIGH PRESSURE

Download now
HYDROGEN

HYDROGEN

Download now

Safety notes

All high pressure fluids are potentially dangerous, never vent fluids without control and never lose connection components when the circuit is pressurized.Always choose the correct tubing and connection components for your application, considering all the application parameters. Tubing and nipples are static components in a system designed and they convey fluids without leakage. With fluctuated pressures make sure that the tubing rating is higher than eventual pressure peak of the circuit. Also consider that over long term the pressure fluctuation will wear the tube, therefore nominal maximum pressure should be much higher than the actual working pressure. Attention should be also given to fluid purity and it should not contain any debris which is abrasive.
